11.07 Display log file information as the status message

 Prerequisites

• Products: Liquid UI WS, Liquid UI Server or Local DLL, Client Software
• Commands: pushbutton(), set(), onscreen(), enter(), message()

Purpose

You will learn how to display the information in log file which is produced during execution of the script files, as message in the status bar. We will walk you through the following steps.

1. Add a pushbutton.
2. Add a logs_message function.

//Create this file inside your script folder for Remove from Storage Other screen: SAPLMIGO.E0001.sjs
//Now let's start adding the content to the above file

1. Add a Display log message pushbutton to display log file information on the status bar.


   //Creates a pushbutton with label name as Display log message to execute the logs_message process on click.
   pushbutton([1,72], "Display log message",{"process":logs_message});







2. Add a function to display message on status bar.


   // Function to display message on status bar
   function logs_message(){
      onscreen 'SAPLMIGO.0001'
         set('F[Material]', '100-300');
         enter();

   // Function prototype to trim blank characters from a string
   String.prototype.trim = function () {
      return this.replace(/^\s+|\s+$/g, "");
   }

      // Goods Issue Other
      onscreen 'SAPLMIGO.0001'
         enter('/7');  //Check

      // Goods Issue Other
      onscreen 'SAPLSBAL_DISPLAY.0120'
         for(j=0; j<3; j++){
            rb = new Reebok([2+j,1]);
            if(rb.name.toString().indexOf("Warning")>-1){
               if(isBlank(msg_type)){
                  msg_type = 'W:';
                  rb2 = new Reebok([2+j,10]);
                  msg_content = rb2.name.substring(rb2.name.indexOf("@",2)+1, rb2.name.length).trim();
               }
            } else if(rb.name.toString().indexOf("Error")>-1){
               msg_type = 'E:';
               rb2 = new Reebok([2+j,10]);
               msg_content = rb2.name.substring(rb2.name.indexOf("@",2)+1, rb2.name.length).trim();
               break;
            }
         }
         enter();

      onscreen 'SAPLMIGO.0001'
         if(msg_type == 'E:'){
            message("E:"+msg_content);
         }
         enter('?');
   }

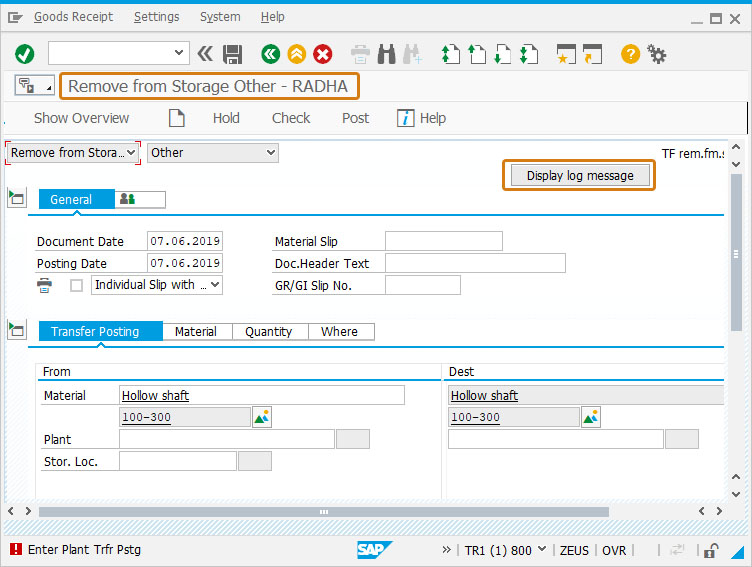

3. Navigate to MIGO transaction and click on Display log message button.





4. You can see error in log file displayed as message on status bar on the bottom of the screen.







This article is part of the Conditional scripts tutorial.
